Standard:BS 598-107, ASTM D1559,AASHTO T 245

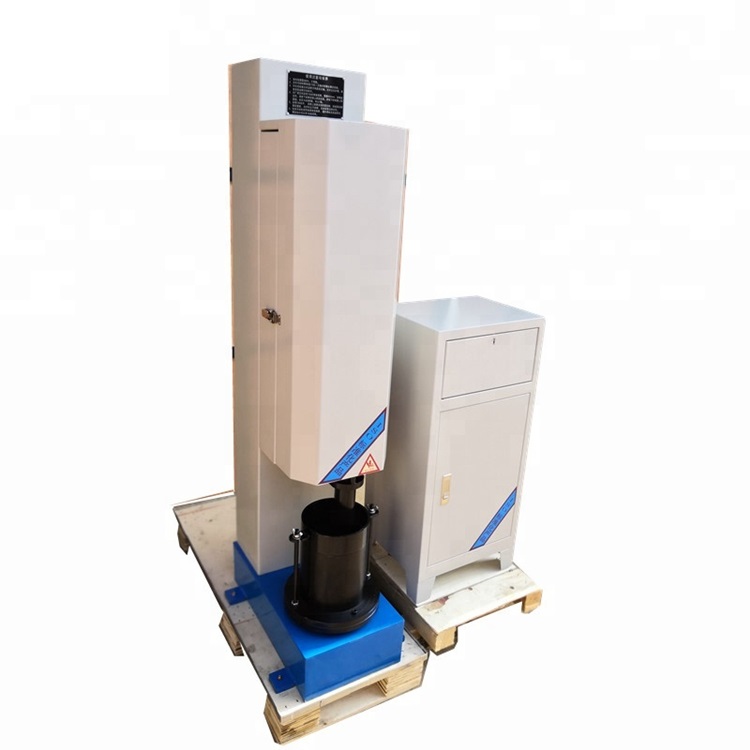

It is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport and building etc. With standard compaction method to determine the relationship between density and water ratio, then confirm the dry density and moisture content of soil. It could satisfy the specimen preparation requirements of CBR tests and resilience modulus tests. It could provide sand module and spodosol module of dia. 152 and dia.100. It could perform light compaction and heavy compaction. With perfect designation, it has lots of specialties such as digital display, auto number and auto circulation etc.
Model NO | TDJ III |
Heavy-duty compacting test | hammer weight 4.5kg drop height 450mm |
Light-duty compacting test | hammer weight 2.5kg drop height 300mm |

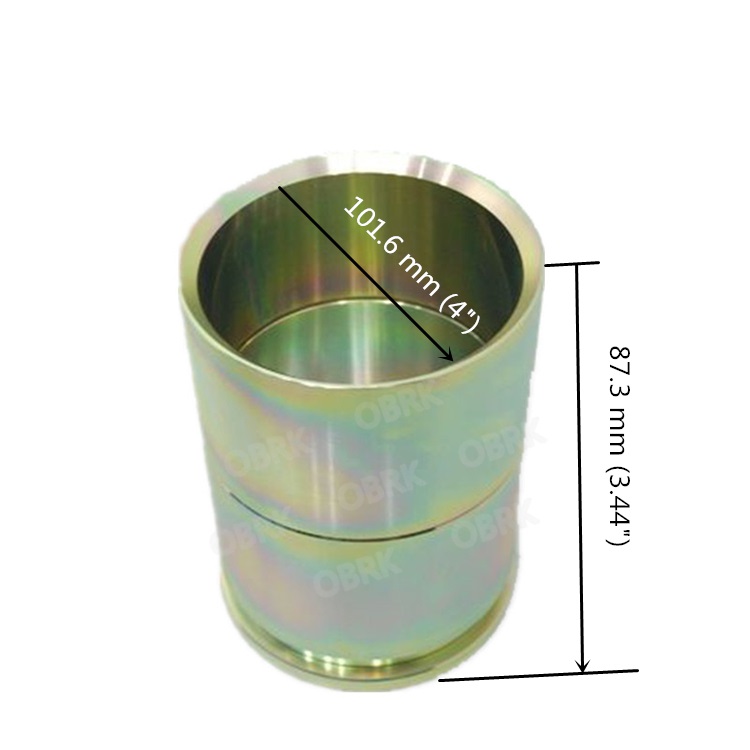

Specimen cylinder dia | Ø101.6x176.40mm Ø152.00x177.00mm |
Hammer head dia. | dia. 50 mm |
Compacting number | 30-32 times/min |
Power | 370 W, 380 V/220V |
Weight | 130 Kg |
Set hit count | 0-99times( adjustable) |
Dimension | 650×400× 1320 mm |
