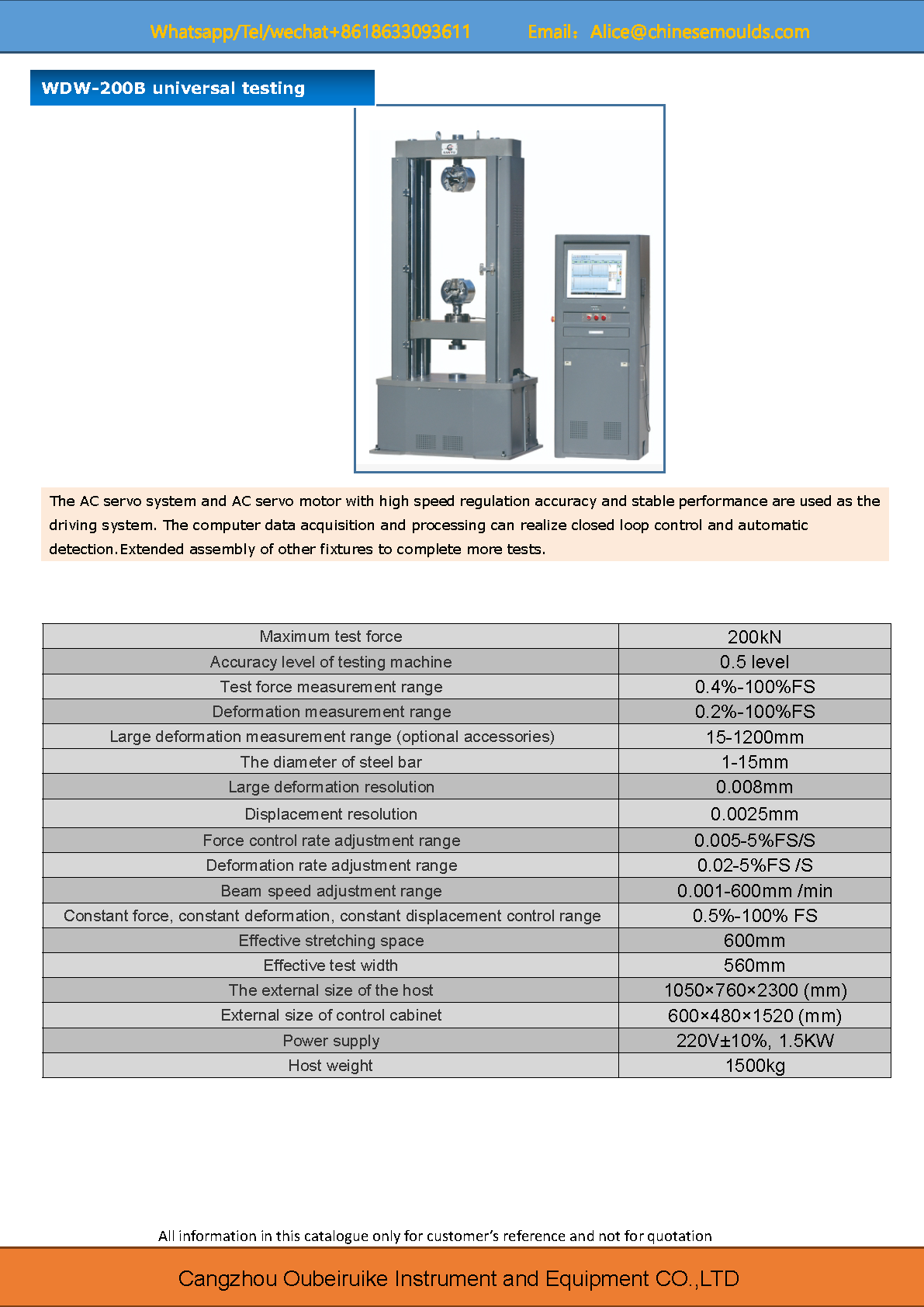

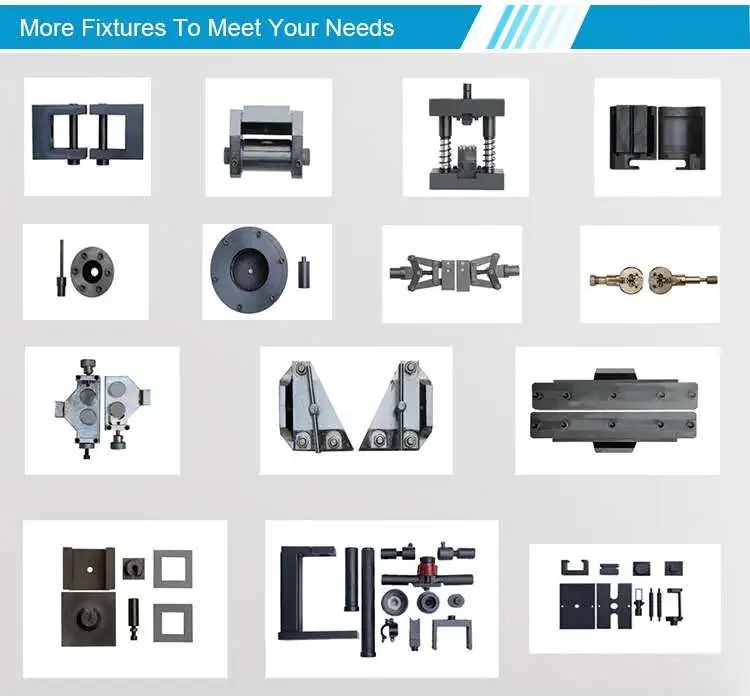

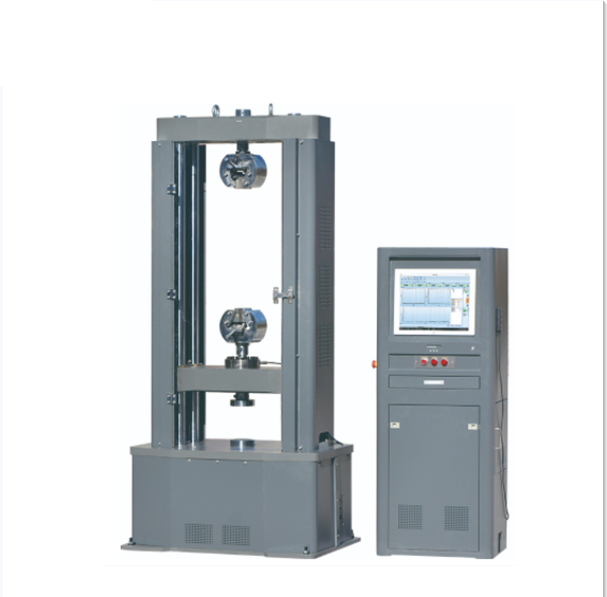

The AC servo system and AC servo motor with high speed regulation accuracy and stable performance are used as the driving system. The computer data acquisition and processing can realize closed loop control and automatic detection.Extended assembly of other fixtures to complete more tests.
Maximum test force | 200kN |
Accuracy level of testing machine | 0.5 level |
Test force measurement range | 0.4%-100%FS |
Deformation measurement range | 0.2%-100%FS |
Large deformation measurement range (optional accessories) | 15-1200mm |
The diameter of steel bar | 1-15mm |
Large deformation resolution | 0.008mm |
Displacement resolution | 0.0025mm |
Force control rate adjustment range | 0.005-5%FS/S |
Deformation rate adjustment range | 0.02-5%FS /S |
Beam speed adjustment range | 0.001-600mm /min |
Constant force, constant deformation, constant displacement control range | 0.5%-100% FS |
Effective stretching space | 600mm |
Effective test width | 560mm |
The external size of the host | 1050×760×2300 (mm) |
External size of control cabinet | 600×480×1520 (mm) |
Power supply | 220V±10%, 1.5KW |
Host weight | 1500kg |
