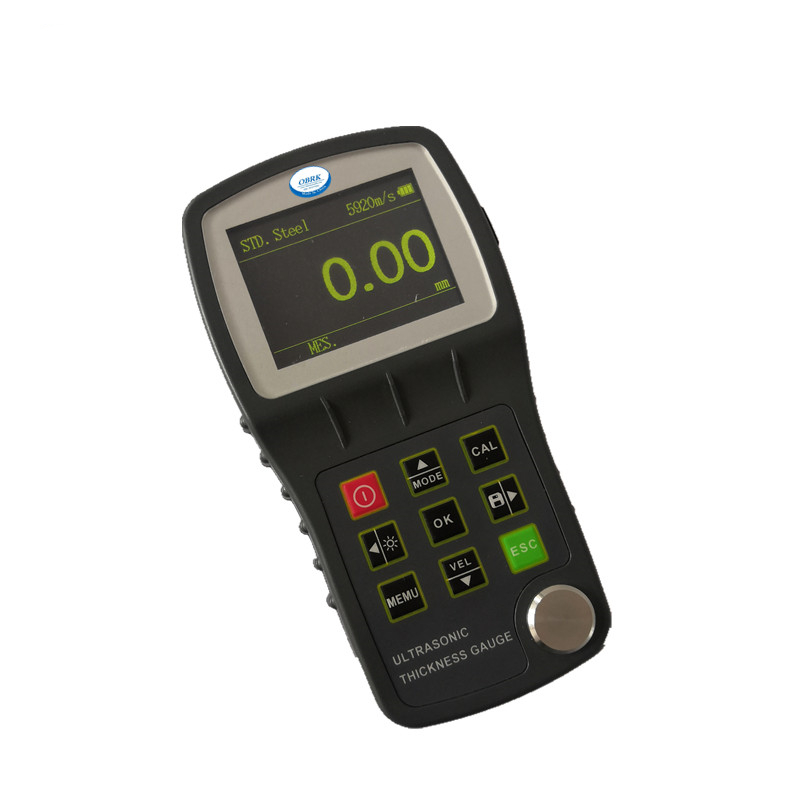

Ultrasonic thickness meter

Operating principle

Ultrasonic wave (pulse-echo)

Measuring range

0.75-300mm

Resolution ratio

0.1mm(> 100mm)/0.01mm(<100mm)

Precision value

±（0.5%H+0.01）mm

Unite

mm/inch

Language

Chinese/English

Scan patterns

scan patterns25Times/S

Frequency bandwidth

0.5-15MHz

 velocity of sound

1000~9999m/s

Optional probe

High temperature/thin wall/coarse crystal/small diameter

2.4-inch hd color screen

High contrast 320X240 true color LCD screen

Acoustic range correction

automatic

Probe connection status indication

yes

Storage

TF card machine storage, can be exported to save

Communication

The USB interface communicates with the upper computer

External dimension

145×75×27 mm

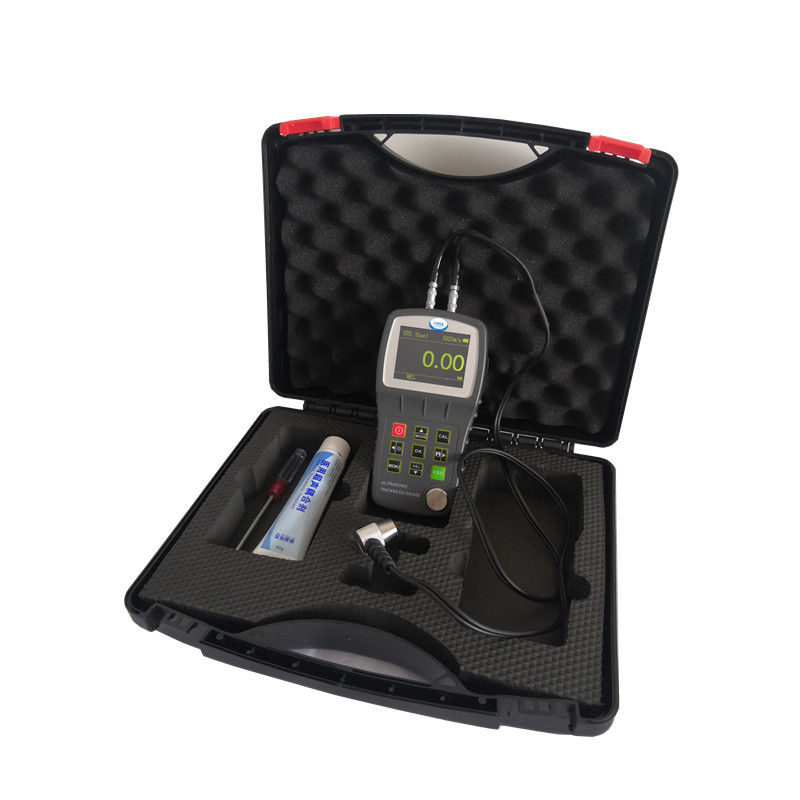

Standard configuration

1 host / 1 probe / 2 batteries / 1 bottle of coupling agent / 1 set of documents / 1 packing case
