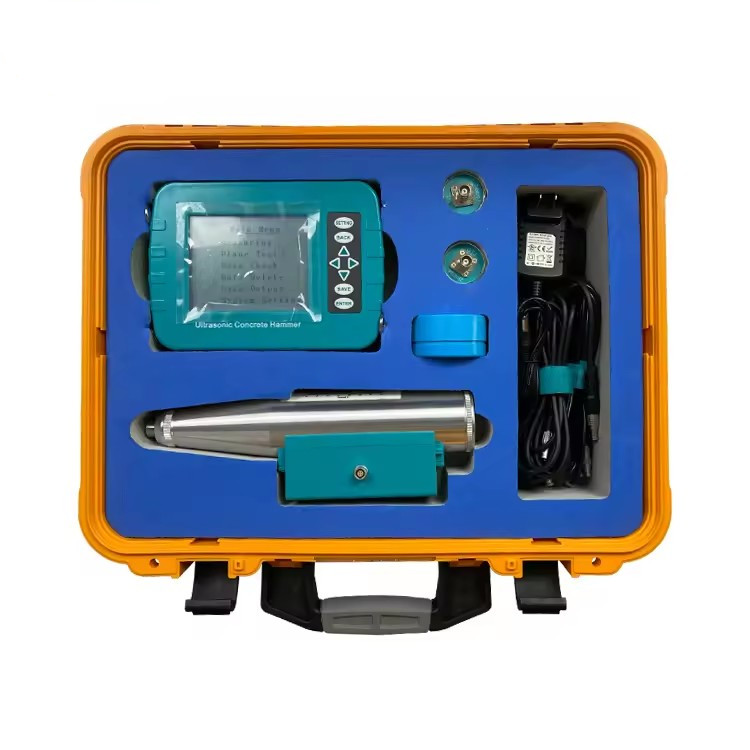

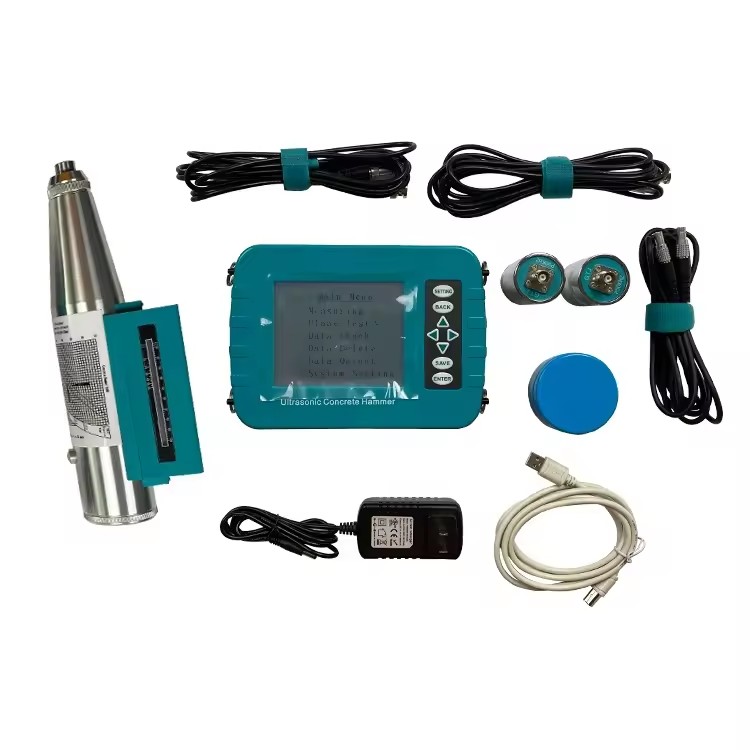

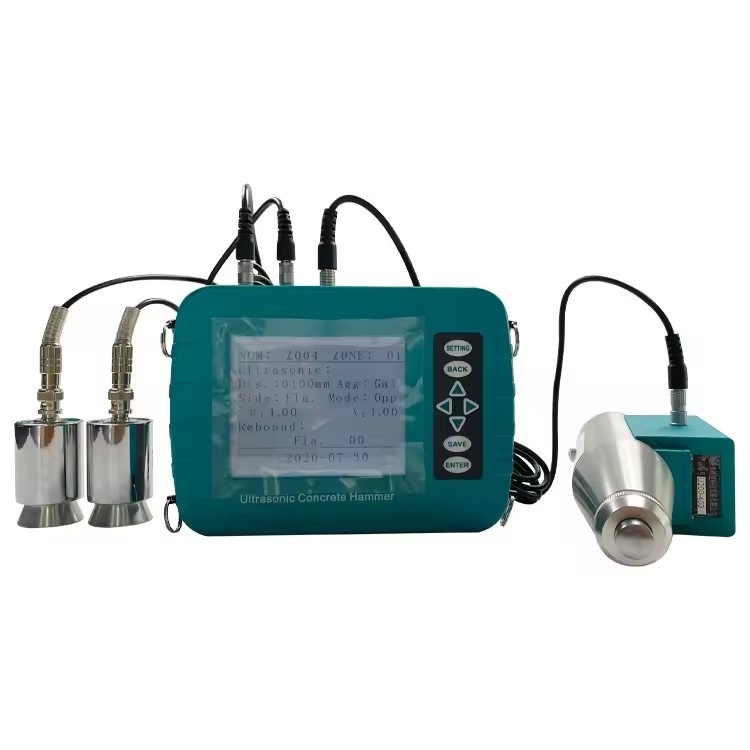

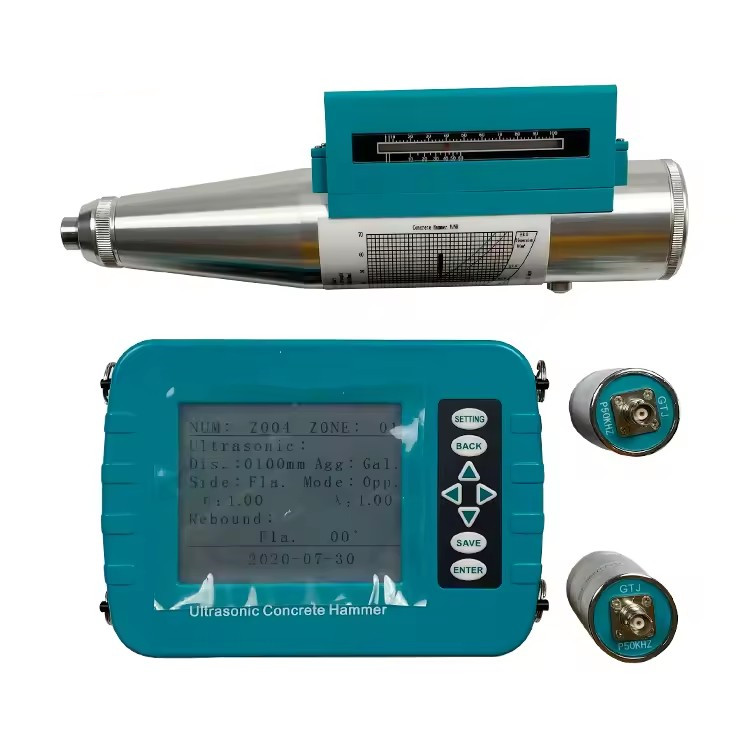

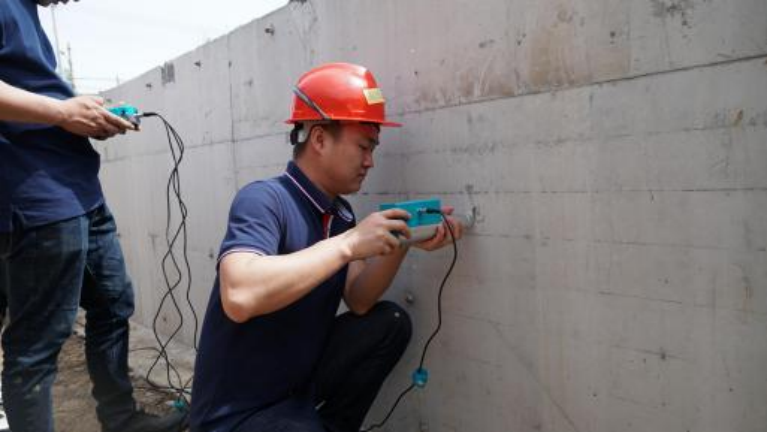

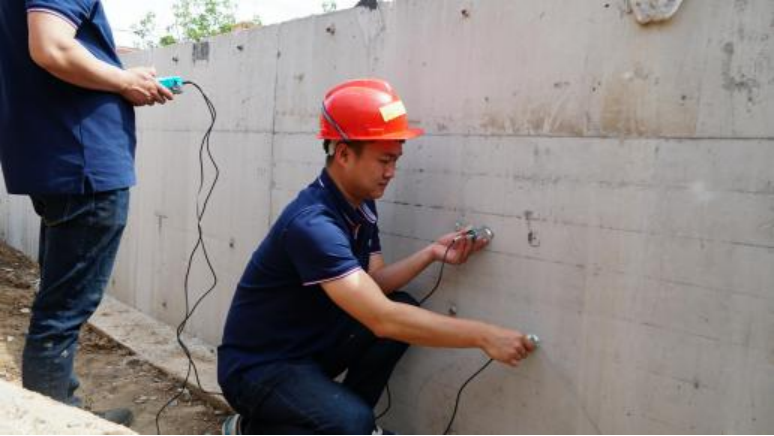

Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.

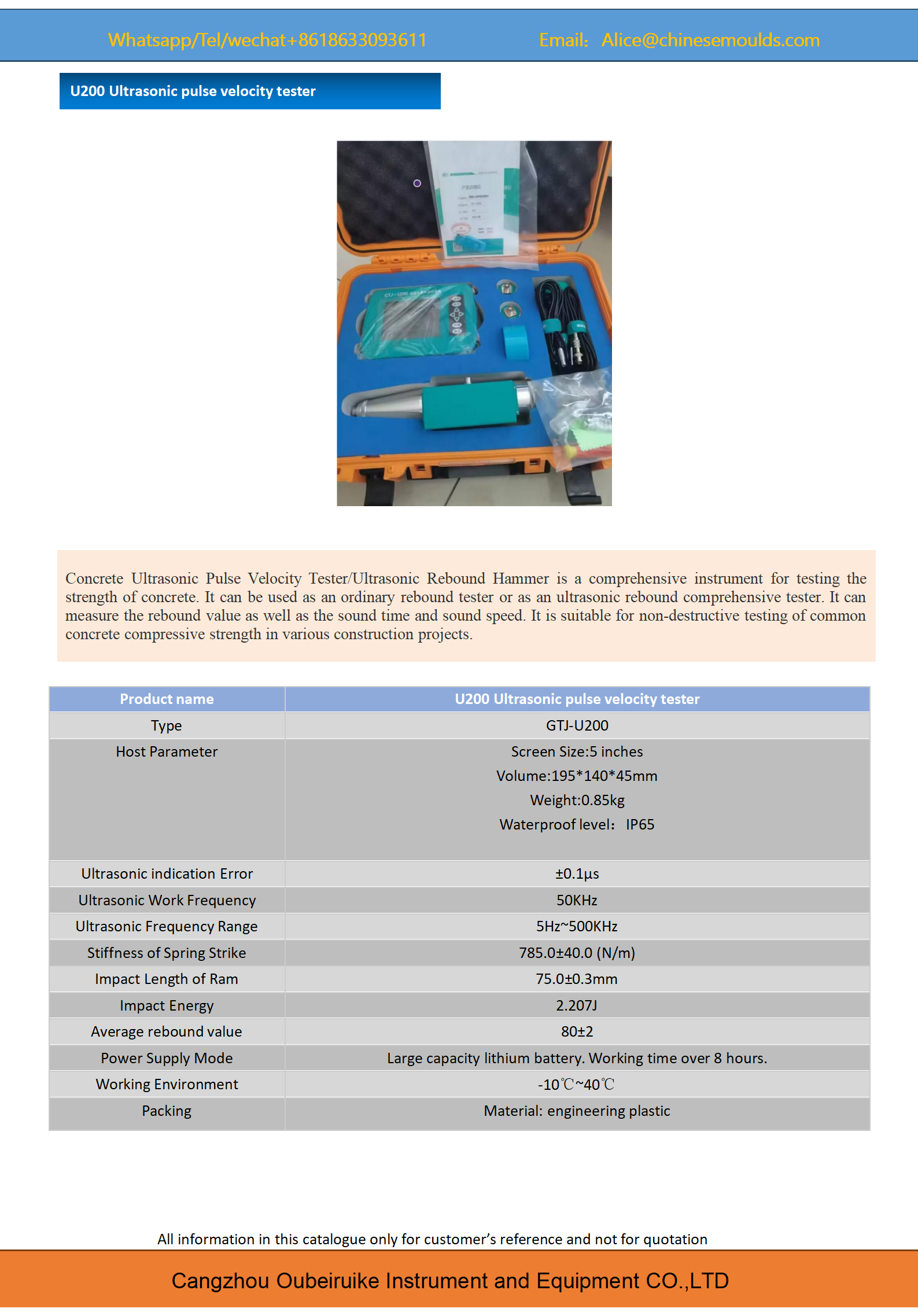

Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Host Parameter | Screen Size:5 inches Volume:195*140*45mm Weight:0.85kg Waterproof level：IP65 |
Ultrasonic indication Error | ±0.1μs |
Ultrasonic Work Frequency | 50KHz |
Ultrasonic Frequency Range | 5Hz~500KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Impact Energy | 2.207J |
Average rebound value | 80±2 |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic |
