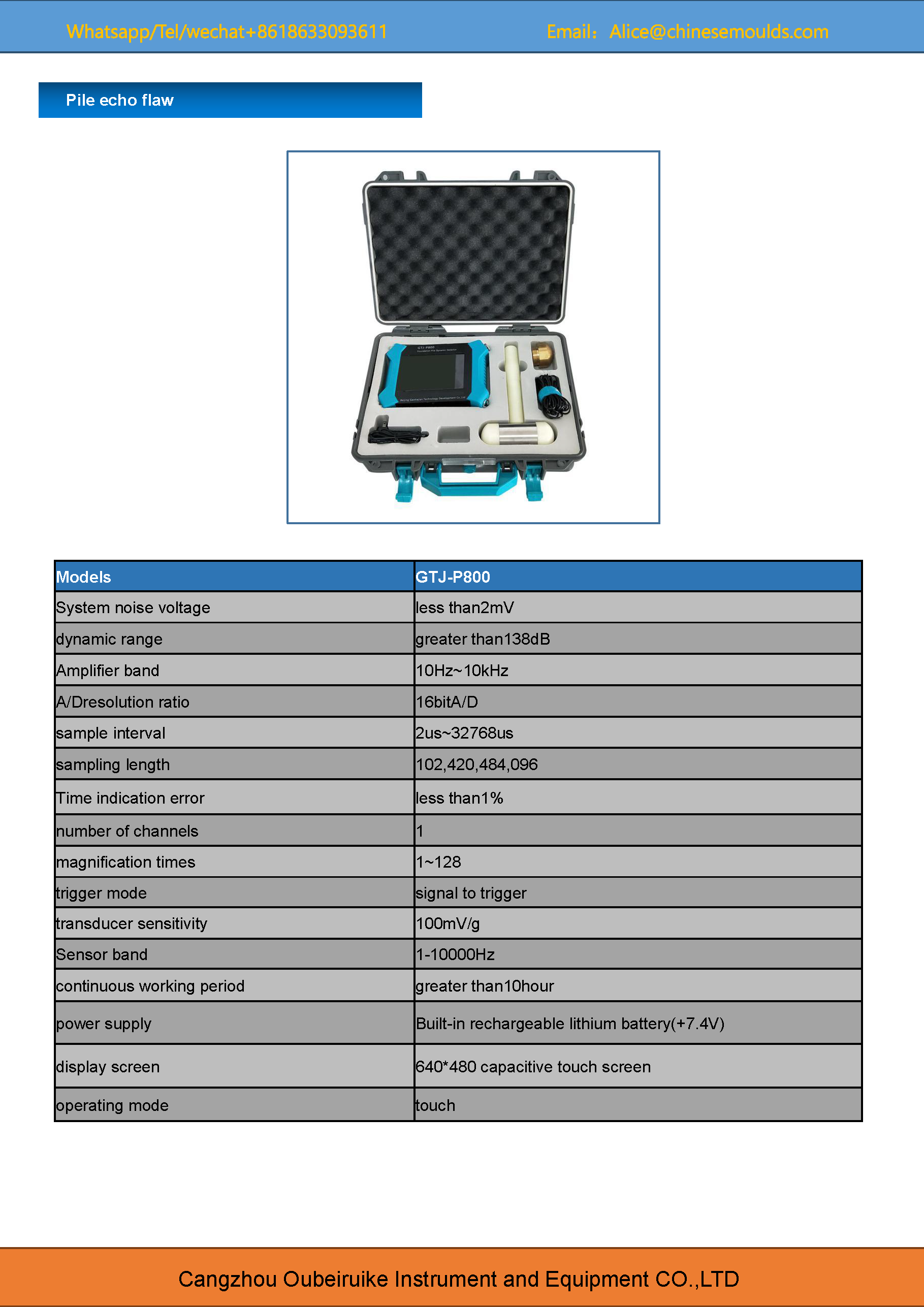

Pile echo flaw P800

System noise voltage

less than2mV

dynamic range

greater than138dB

Amplifier band

10Hz~10kHz

A/Dresolution ratio

16bitA/D

sample interval

2us~32768us

sampling length

102,420,484,096

Time indication error

less than1%

number of channels

1

magnification times

1~128

trigger mode

signal to trigger

transducer sensitivity

100mV/g

Sensor band

1-10000Hz

continuous working period

greater than10hour

power supply

Built-in rechargeable lithium battery(+7.4V)

display screen

640*480 capacitive touch screen

operating mode

touch

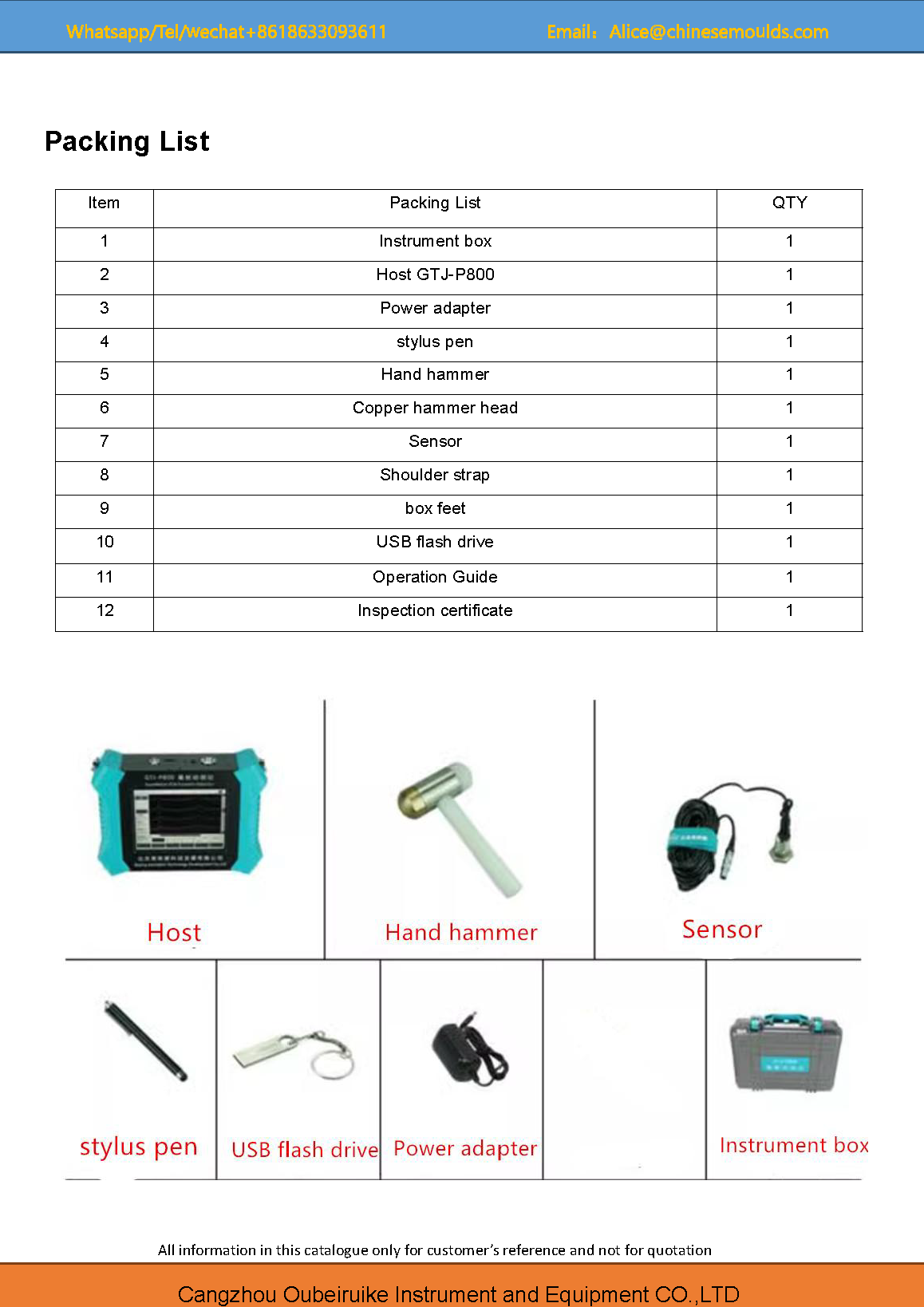

1

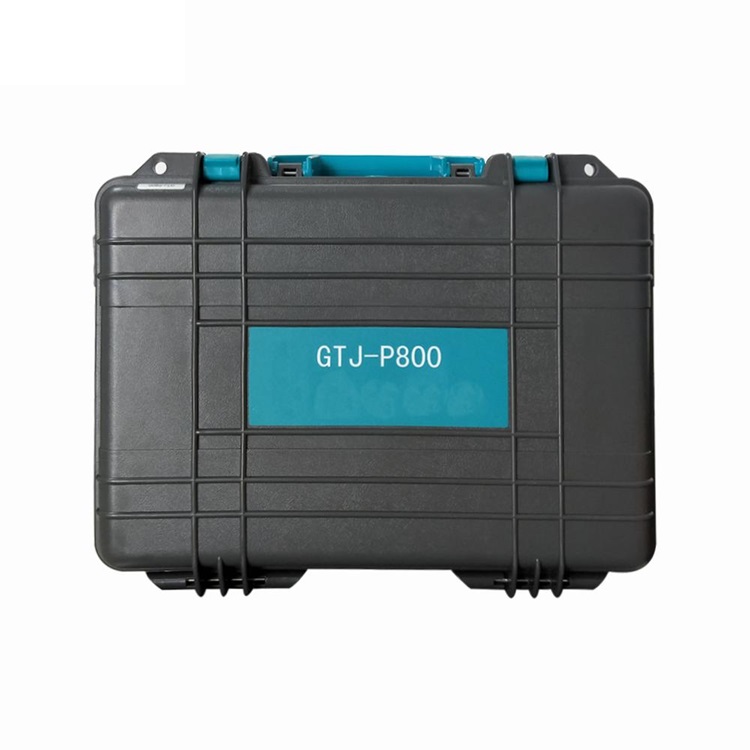

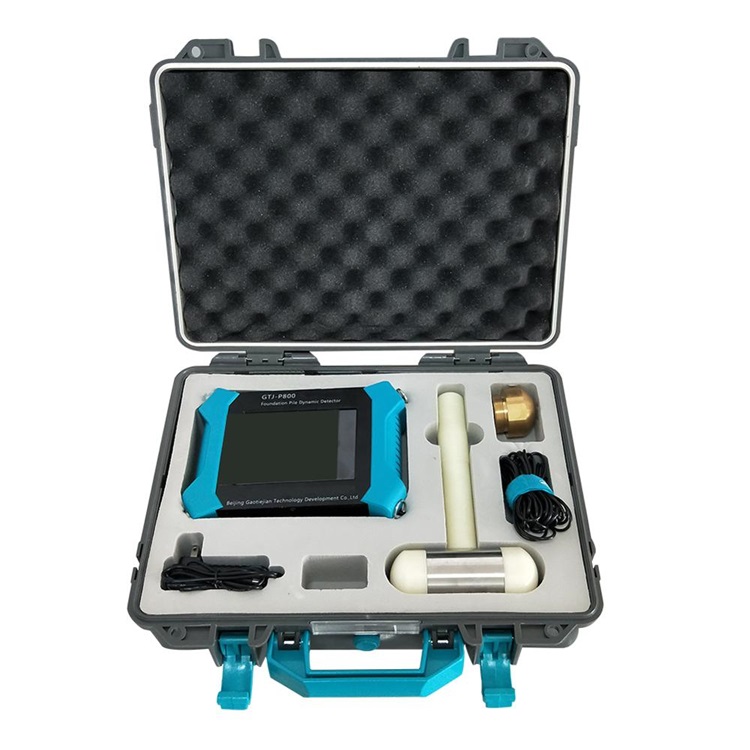

Instrument box

1

2

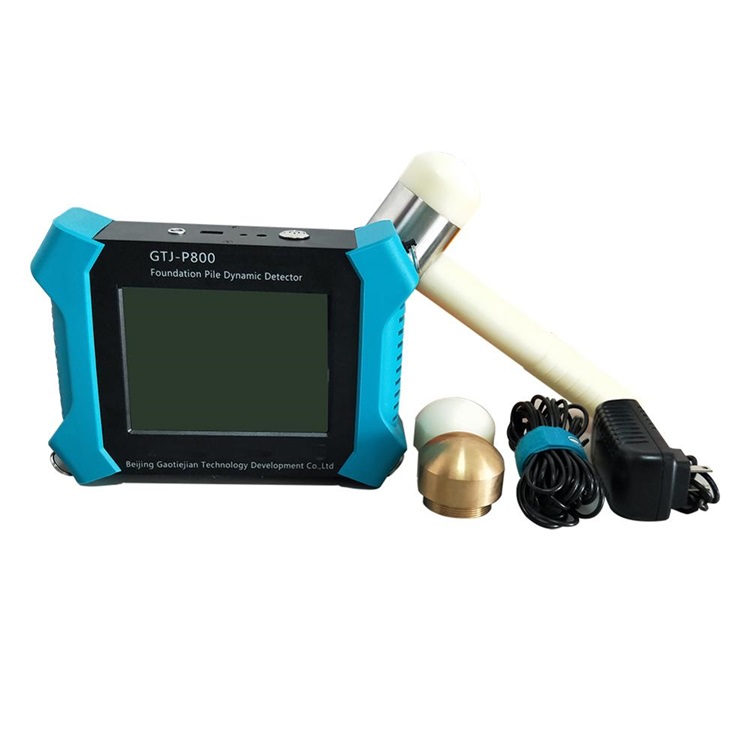

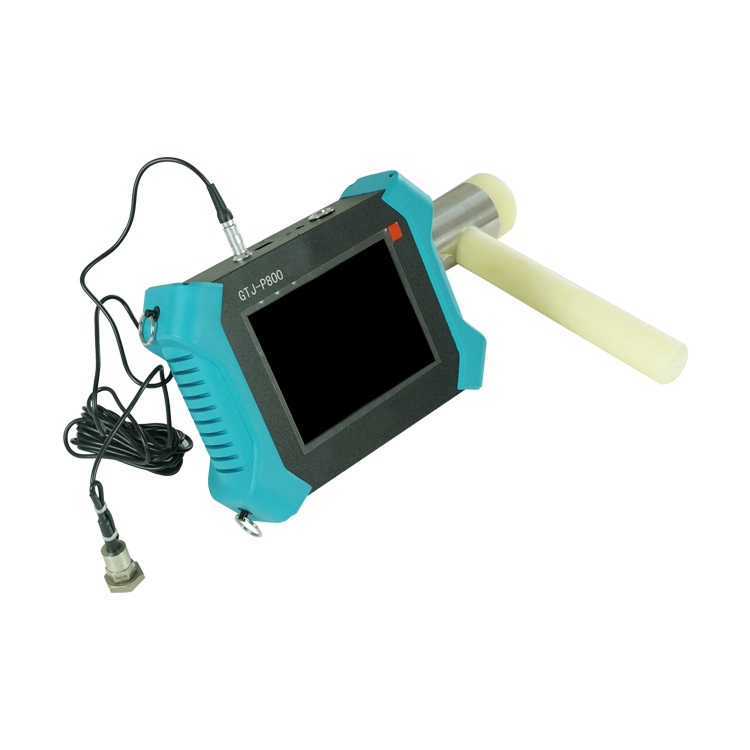

Host GTJ-P800

1

3

Power adapter

1

4

stylus pen

1

5

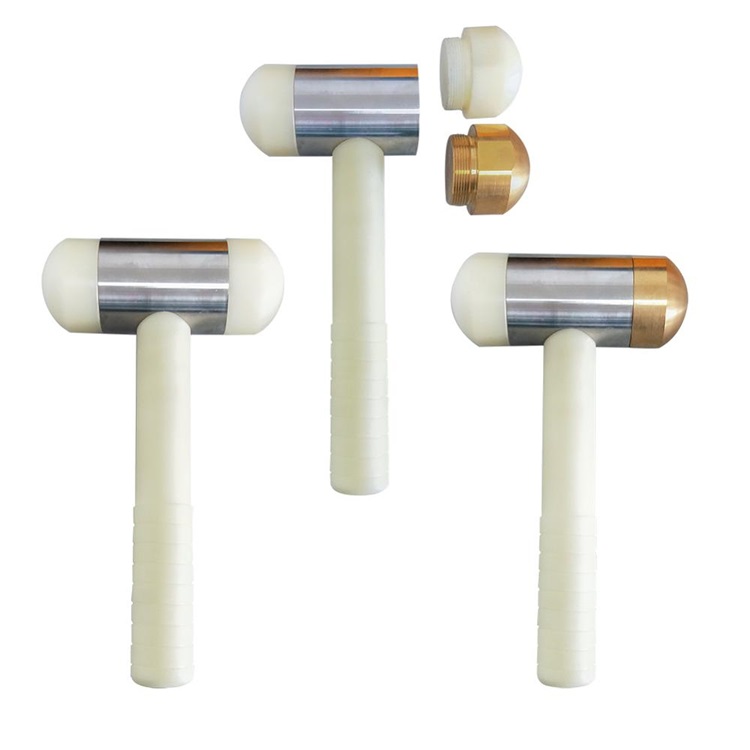

Hand hammer

1

6

Copper hammer head

1

7

Sensor

1

8

Shoulder strap

1

9

box feet

1

10

USB flash drive

1

11

Operation Guide

1

12

Inspection certificate

1
