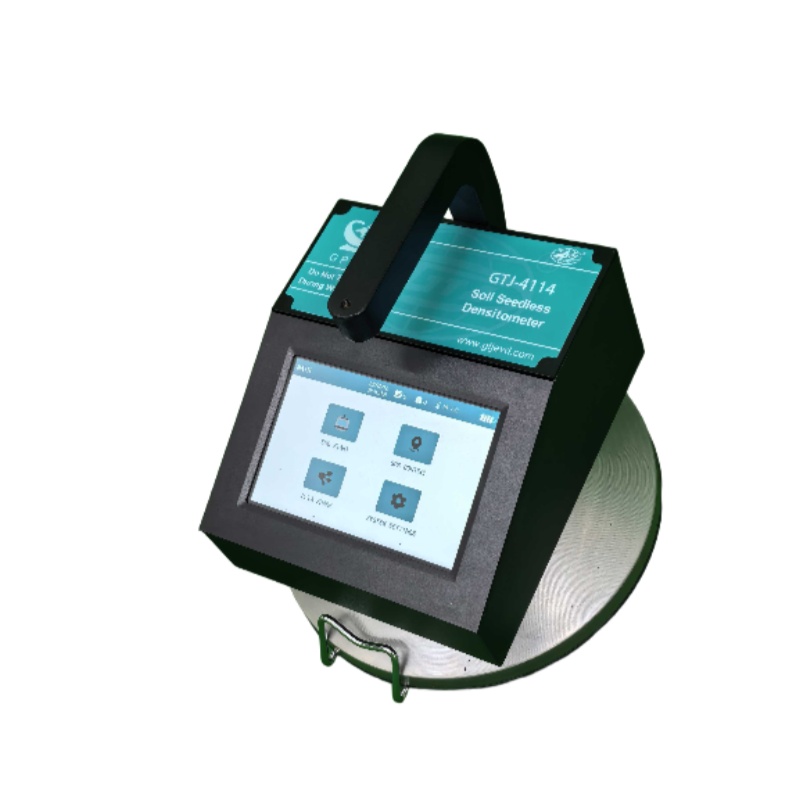

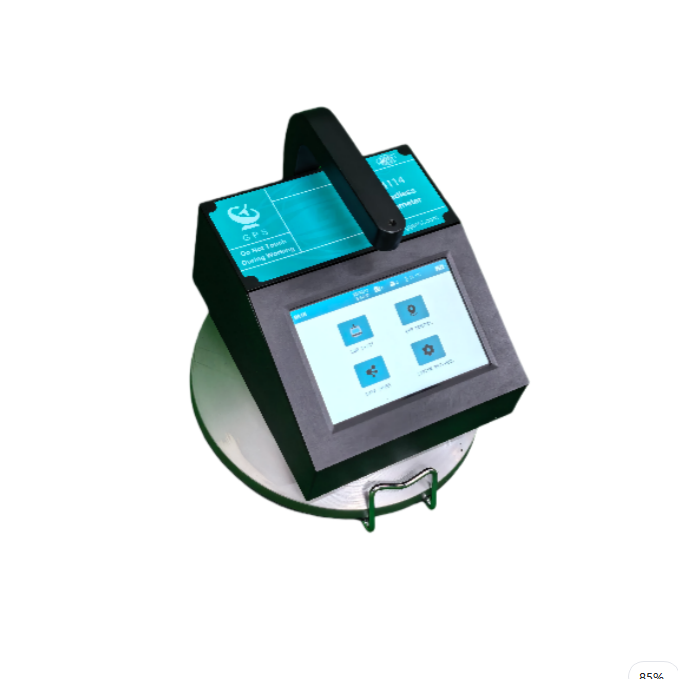

Non-Nuclear Soil Density Gauge

Product Features:

No special radiation detection or certificates are required;

During the testing process, the sample structure does not need to be damaged;

Compact in size and easy to use;

The test results are in international units (g/cm3);

Temperature compensation;

The internal memory can store test data for 4200 measurement points;

Equipped with a satellite positioning module, making it convenient to record the testing location;

The test results can be easily downloaded to a computer;

Uses a large-capacity lithium-ion rechargeable battery, allowing for long-term continuous operation;

Included with a USB charging cable, convenient and fast.

Item name	Soil non-nuclear density gauge-4114
Monitor parameters	5.0-inch true-color display screen
Battery	10400mAh lithium-ion rechargeable battery
Electromagnetic wave frequency	40 - 100K, low frequency, no radiation
Wet density range	The standard scope of on-site soil compaction work
Dry density accuracy	Within 3% of the standard test result
humidity range	The standard scope of on-site soil compaction work
Environment temperature	－7°C～43°C
Temperature compensation	Have
Memory capacity	4,000 engineering measurement points and 24 soil models
Measuring depth	50-300mm
GPS	standard configuration
Report export method	Install the PC-end data export software and drivers
characteristic function	Non-destructive measurement
Host size	270mm×270mm×280mm
Weight	3KG
