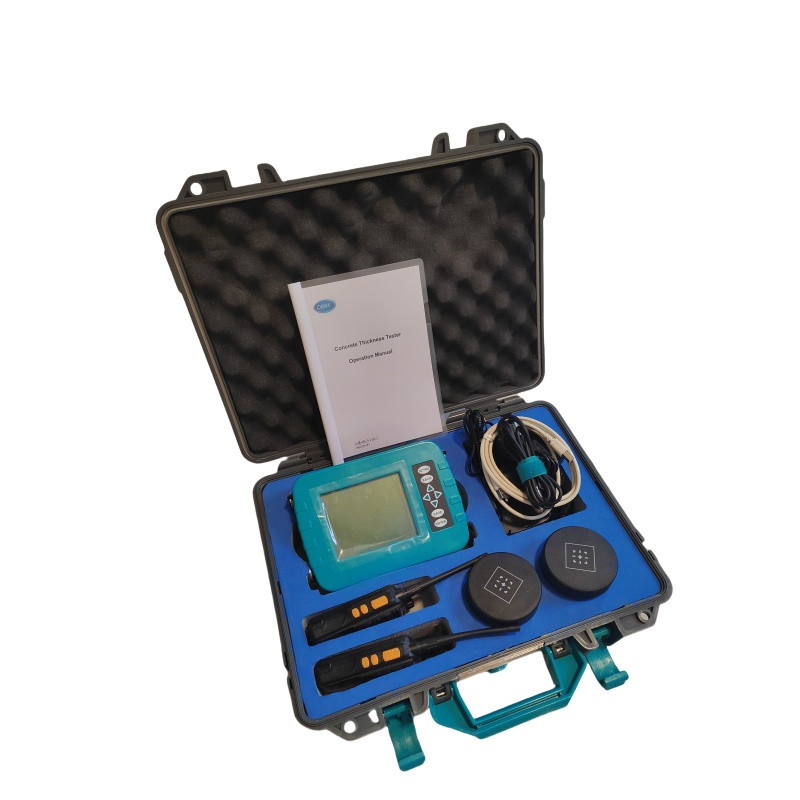

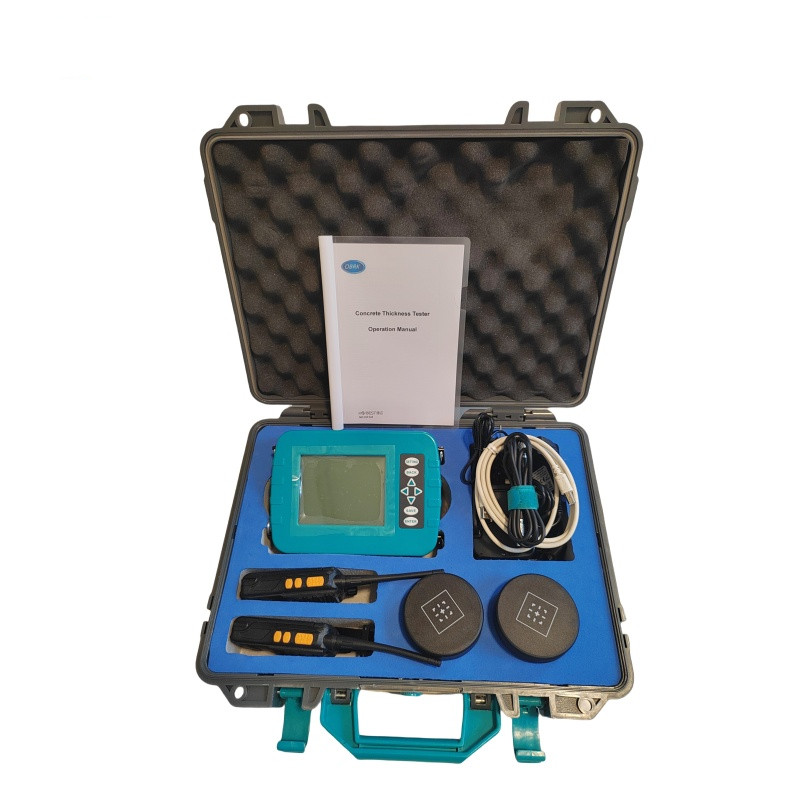

Non-Metallic Plate Thickness Tester adopts ultrasonic technology for non-destructive thickness measurement of concrete floor slabs and non-metallic panels. The package includes main unit, probes, walkie-talkies and impact-resistant protective case for construction site inspection.
Item name | Concrete Non-metal Floor Thickness Gauge |
Test scope | 40mm~800mm |
Permissible error | 40 ~ 600 mm ±1 mm |
Permissible error | 601 ~ 800 mm ±2 mm |
Data storage capacity | 3.2 group data |
Transmitting probelayer | 100X120mm |
Receiving probe | 60x80mm |
Temperature | -10℃ to +40℃ |
Standard | GB 50204-2002 |
interface type | USB-B connector |
Power supply | 9VDC Alkaline cell X 6 |
Size | 230x150x70mm |
Weight | 5Kg |
