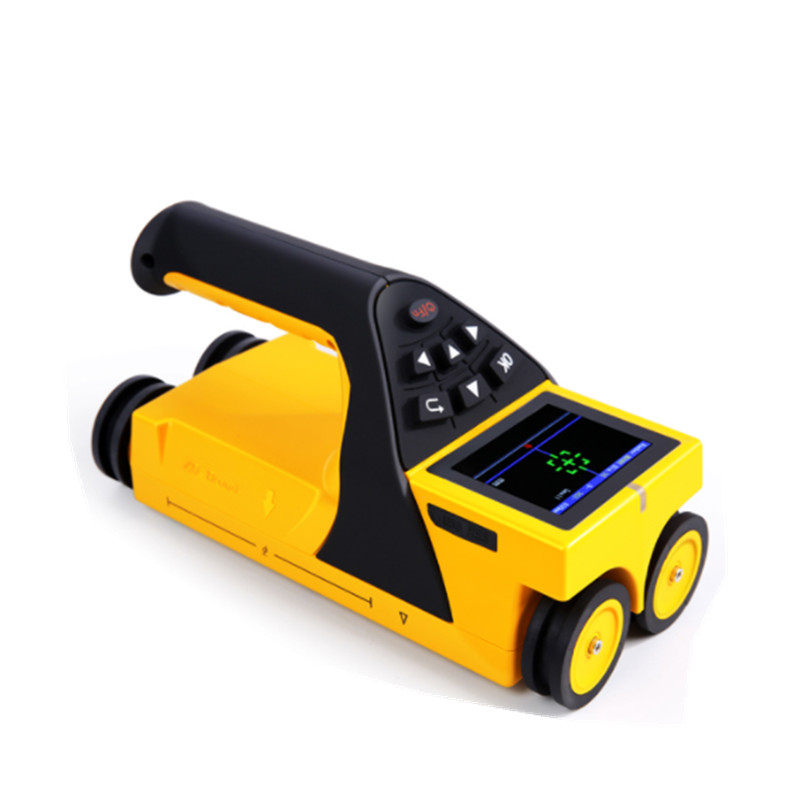

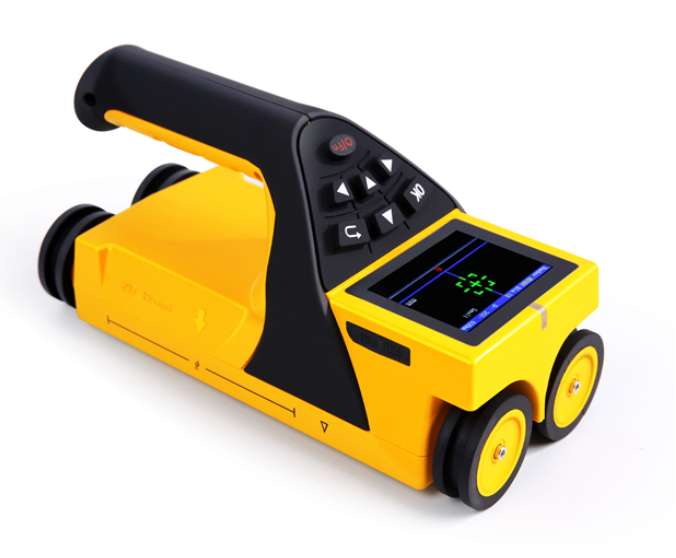

Integrated Rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation ; It is characterized in coil structure design, faster speed, higher accuracy,
Item | value |
Applicable range of Rebar (mm) | φ6~φ50 |
Protective layer | Small range:1~80 |
Power supply | Built in high capacity lithium battery |
Test range (mm) | The first range: 1～90 |
the second range: 5～185 | |
Screen | 320*240 |
Woking hours | ≥16h |
Size | 219*92*106mm |
Data transfer mode | USB\Wireless |
Operation | Silicone keypad |
Storage | 200K Measuring point of steel bar |
Display resolution | 2.8-inch high-resolution color LCD screen (320×240 pixels) |
Set shutdown time | 5m, 10m, 15m, 30m, 60m, 90m |
