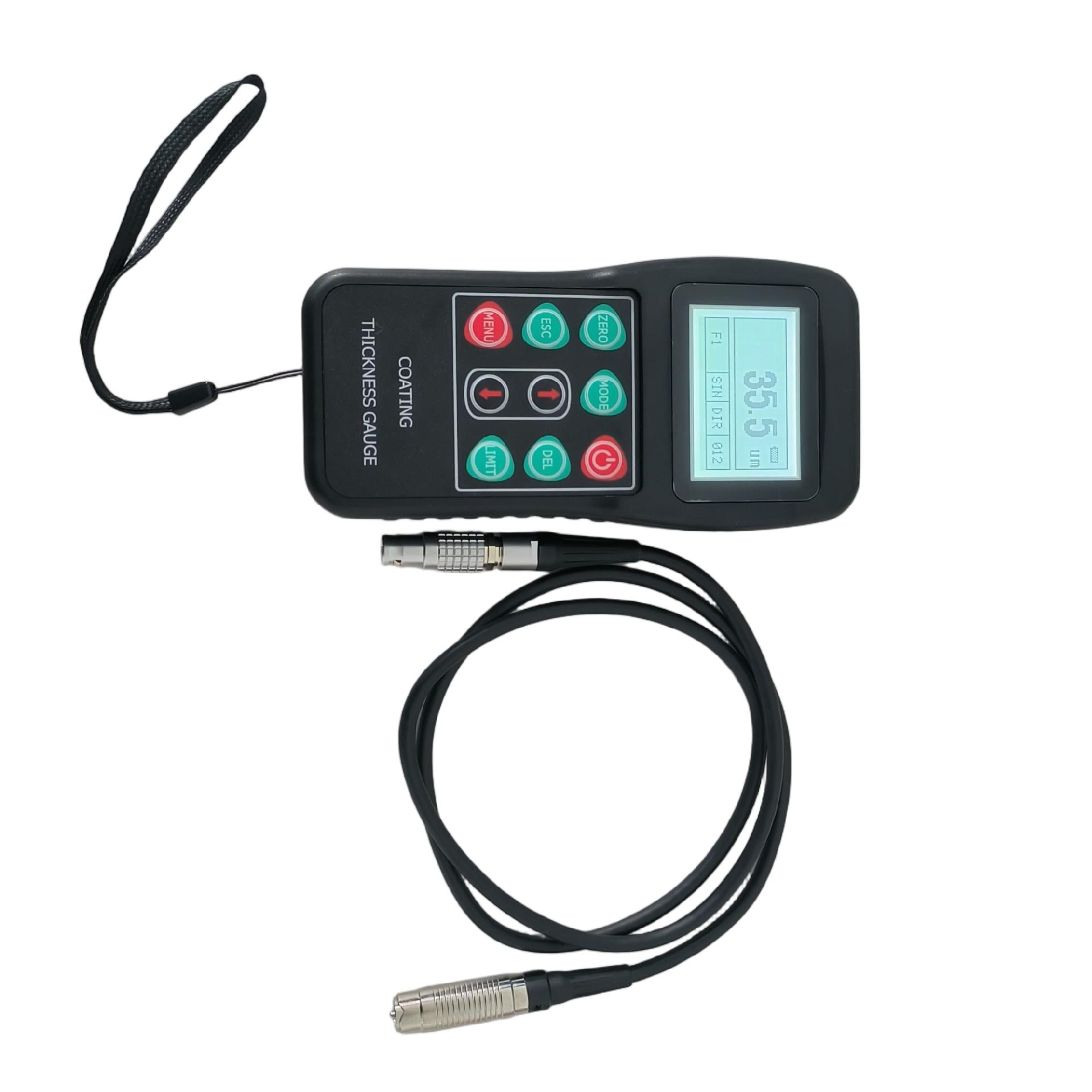

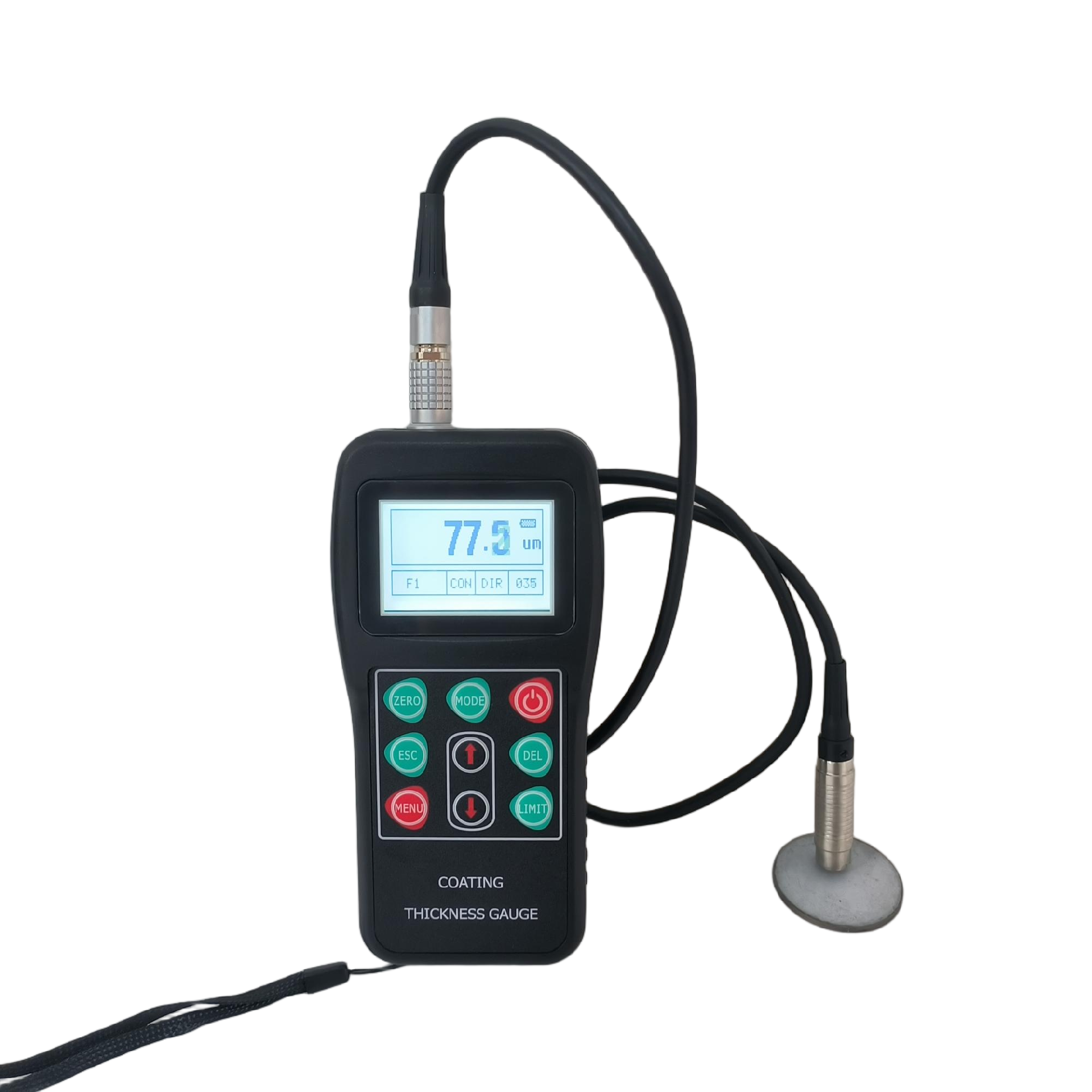

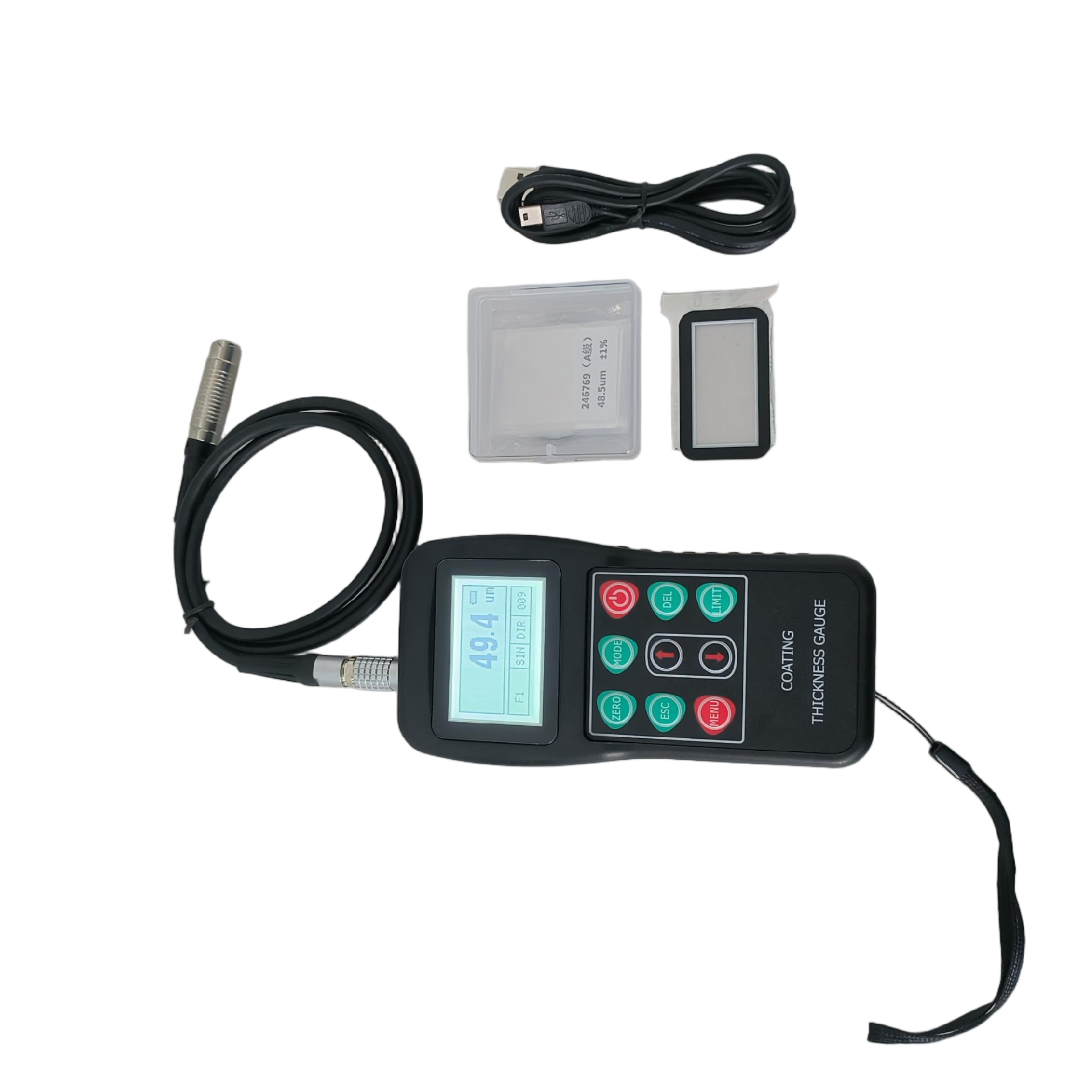

Portable Coating Thickness Gauge

Probe selection

Optional 10 probes

F1(Paint/Plating/Fire-resistant layer and 10mm inner cover)

Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10

Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10

Working principle

Magnetic induction and eddy current

Measurement accuracy

F1(±((1~2)%H+1)), F10(±((1~3)%H+1)), N1(±((1~2)%H+1))

Measuring range

F1(0~1250um), F10(0~10000um), N1(0~1250um)

Minimum curvature

F1(3mm),F10(10mm),N1(4mm),F400(1mm)

Minimum area

F1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3)

Measurement method

Continuous measurement method, single measurement method

Statistics function

Mean, Large, Small, Tests,Standard Deviation

Calibration method

Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe

Statistics function

Mean, Large, Small, Tests,Standard Deviation

Calibration method

Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe

Storage function

Can store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurement

Alam system

Linits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function; beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps

Shutdown method

Manual shutdown mode and automatic shutdown mode

Power supply

Two 5# batteries
