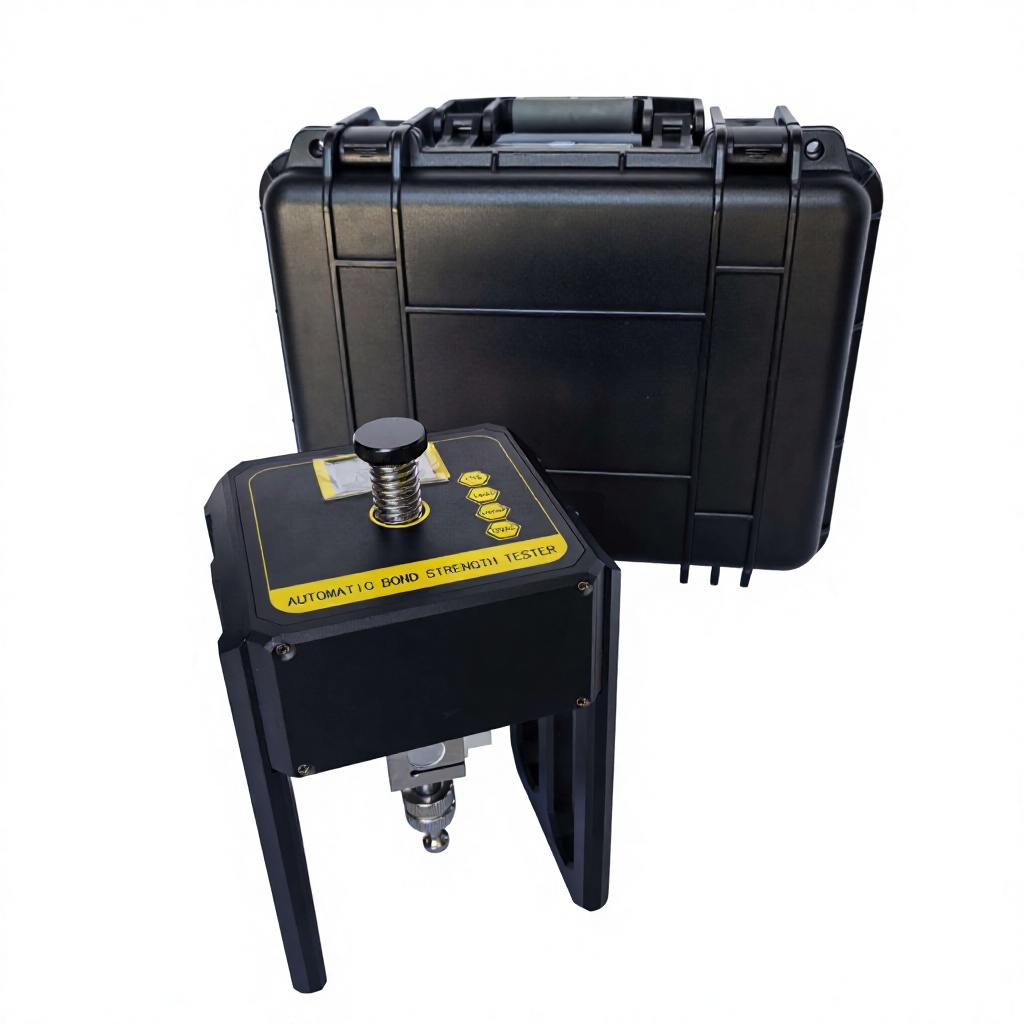

The fully automatic bonding strength tester is a new type of automatic testing instrument newly developed by our company. It is suitable for testing the pull-out force of rivets for fixing insulation materials in construction projects, the bonding strength of wall insulation materials, and the bonding strength of exterior wall facing bricks, carbon fiber materials, various panels, paints and other materials.
Name | Fully Automatic Bond Strength Tester |
Control mode | Touch screen + button |
Display mode | KN and MPa, psi are displayed simultaneously |
Measurement range | 0~10KN |
Resolution | 0.001KN |
Accuracy level | 0.5%F.S |
Displacement range | 50mm |
Displacement resolution | 0.01mm |
Stretching rate | 4~14mm/min (adjustable) |
LCD display | LCD display |
Storage capacity | 200,000 records |
Peak hold | Support |
Curve display | Force value, strength value and time display |
Fixed load value function | Support |
Value correction | 10-segment broken line |
Power supply method | Lithium battery |
Material of the host | Lightweight alloy |
Main body weight | 4.5kg |
