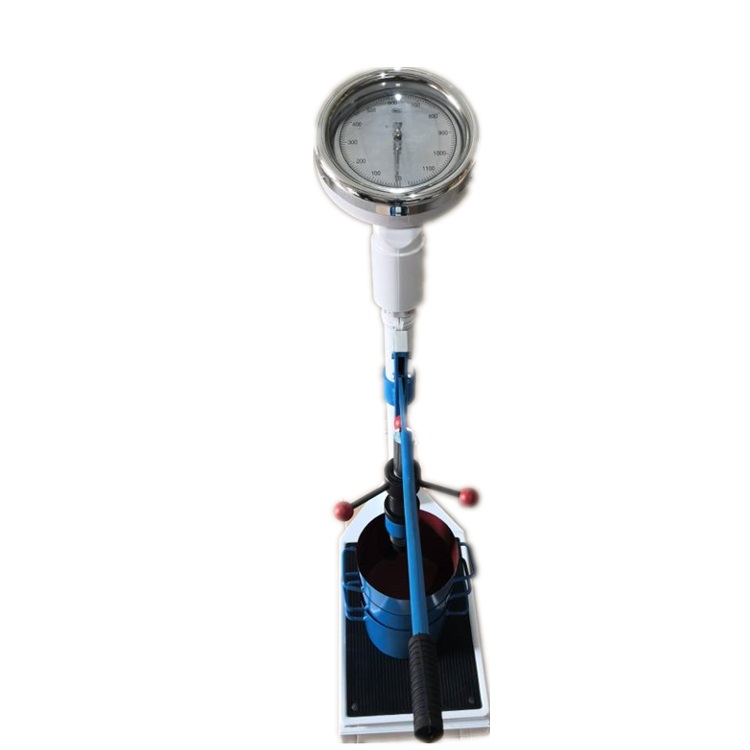

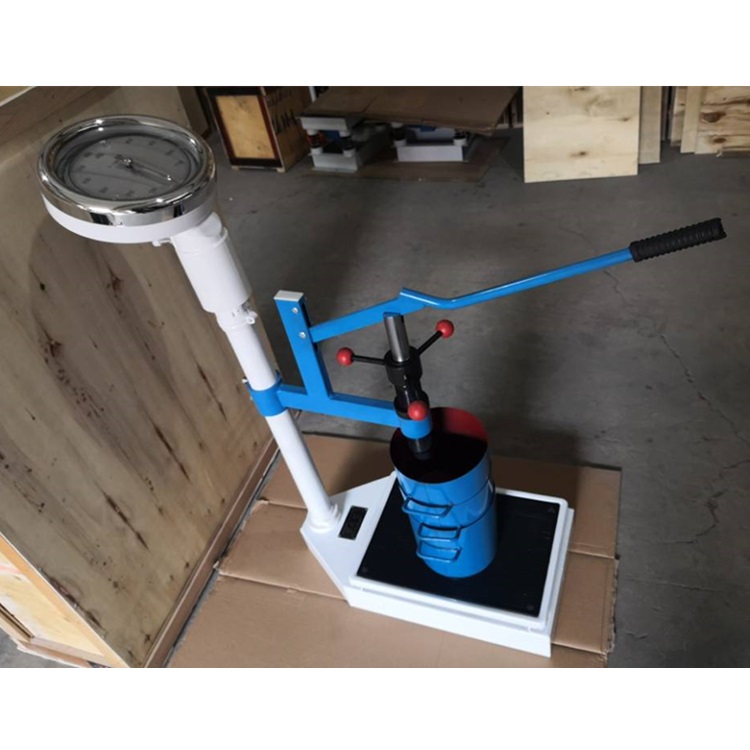

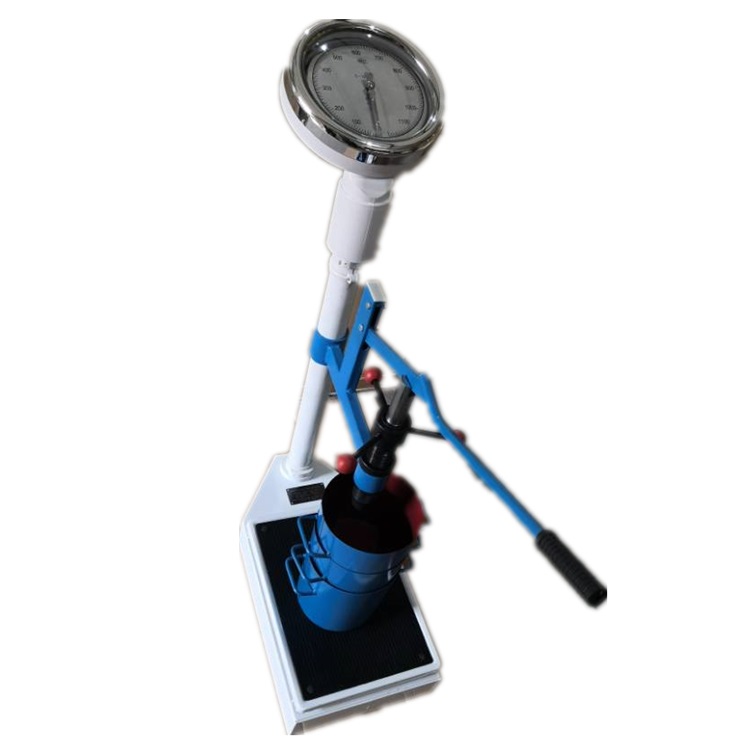

This apparatus is used to determine the setting time of concrete by means of penetrations resistance measurements on mortar.

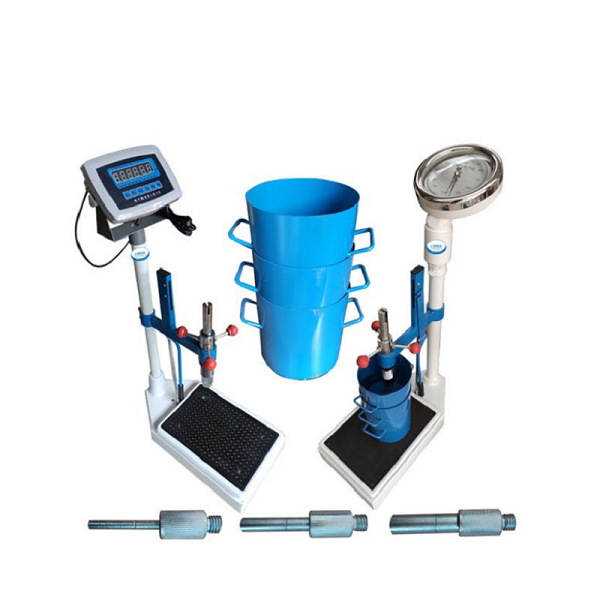

Model | HG-80 | HG-100 |
Display | Pointer | LCD display |
Penetration needle | 100mm², 50 mm², 20 mm² | 100mm², 50 mm², 20 mm² |
Max penetration force | 1000N | 1000N |
Penetration depth | 25mm | 25mm |
Penetration speed (manual control) | 2.5mm/S | |
Dimension | 585×280×965（mm） | 585×280×965（mm） |
Voltage | 220V | |
Net weight | 12KG | 12KG |
