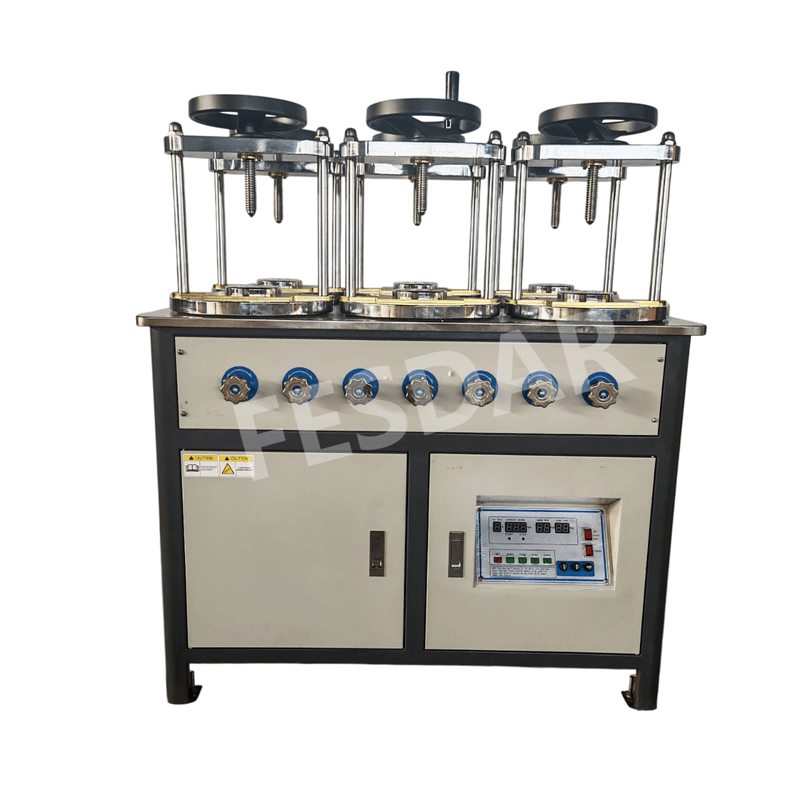

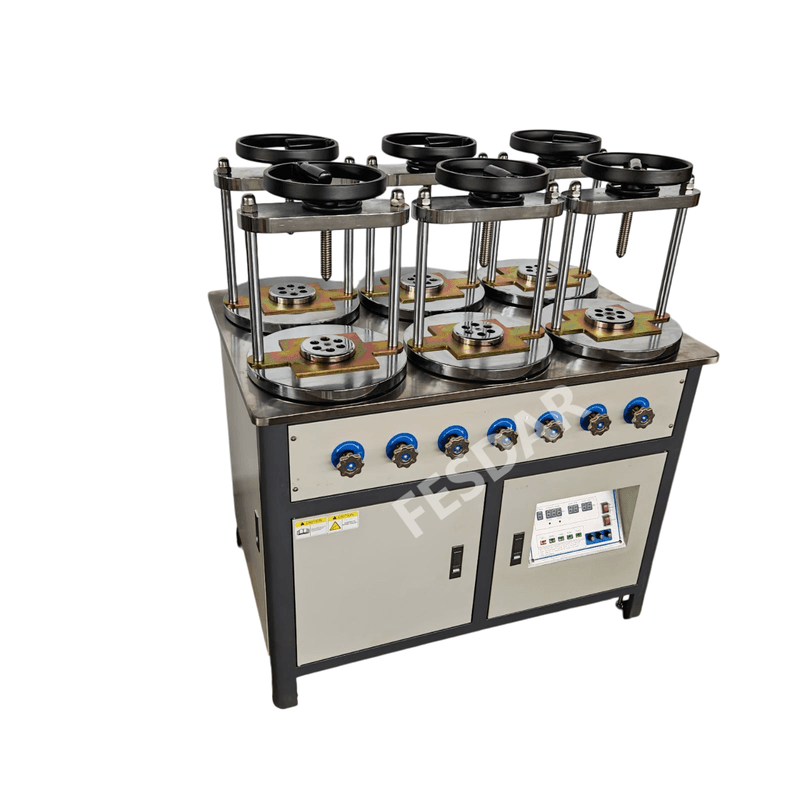

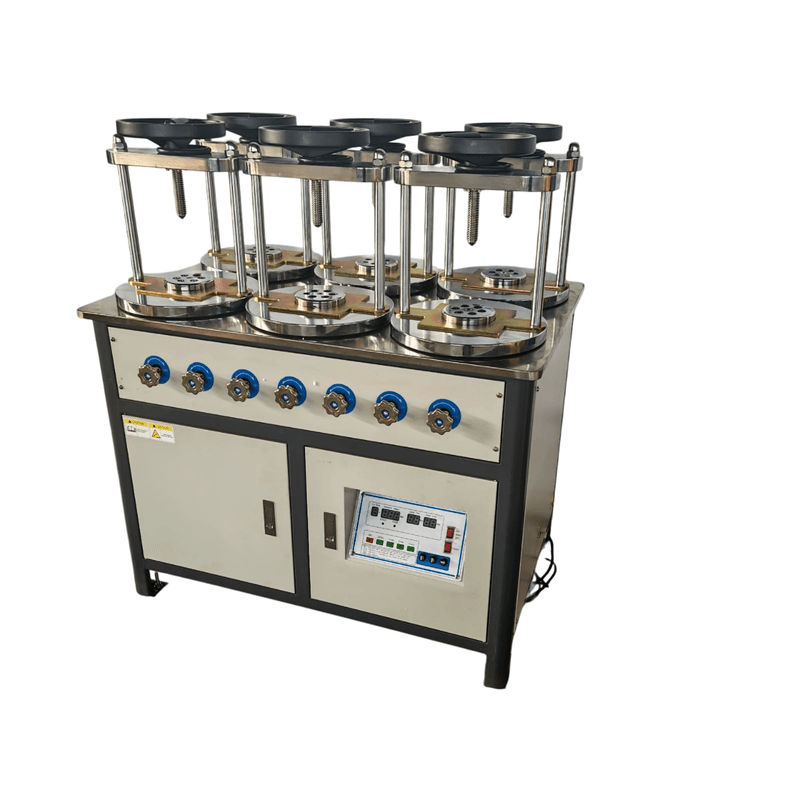

* This apparatus is used to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. the unit accepts concrete cubic, cylindrical or prismatic specimens having “max.
* The specimen is put into the test chamber, clamped with suitable flanges and round gaskets.
* A known water pressure is applied on the specimen’s surface for a known time. A manometer checs constantly the applied water pressure.
Product Name | Mortar Concrete Water Permeability Apparatus |
Model | HP-40 Type |
Motor Power | 90W |
Power | 380V-50HZ |
Working pressure | 4Mpa/cm2 |
Number of specimen | 6pcs |
Geometry of the molding | 150x150x150mm, 175x185x165mm |
Working methods | Microcomputer automatic pressurization |
Dimensions | 960X650X1000mm |
Weight | 220Kg |
