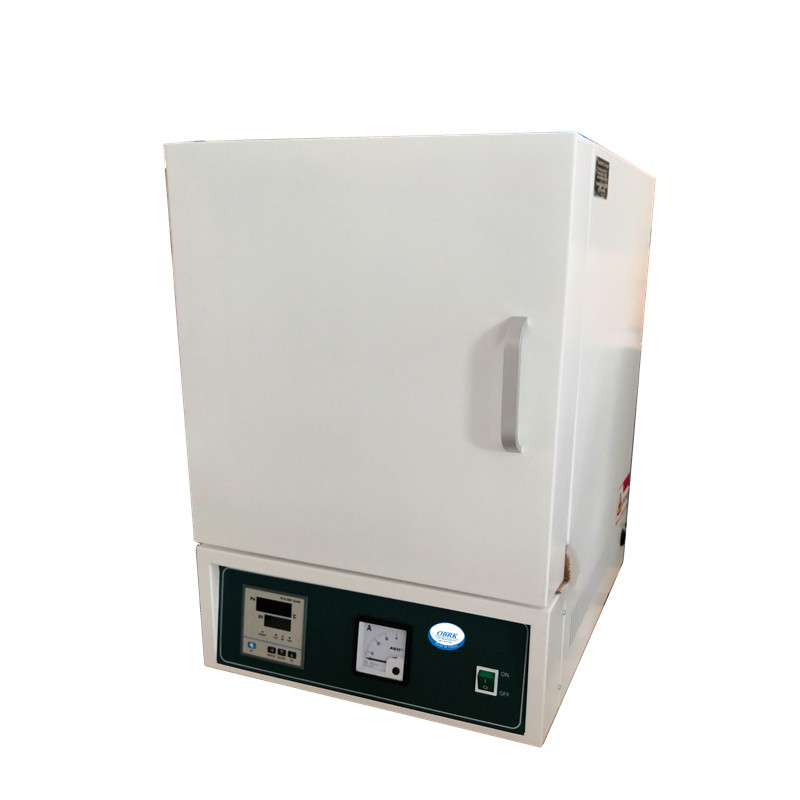

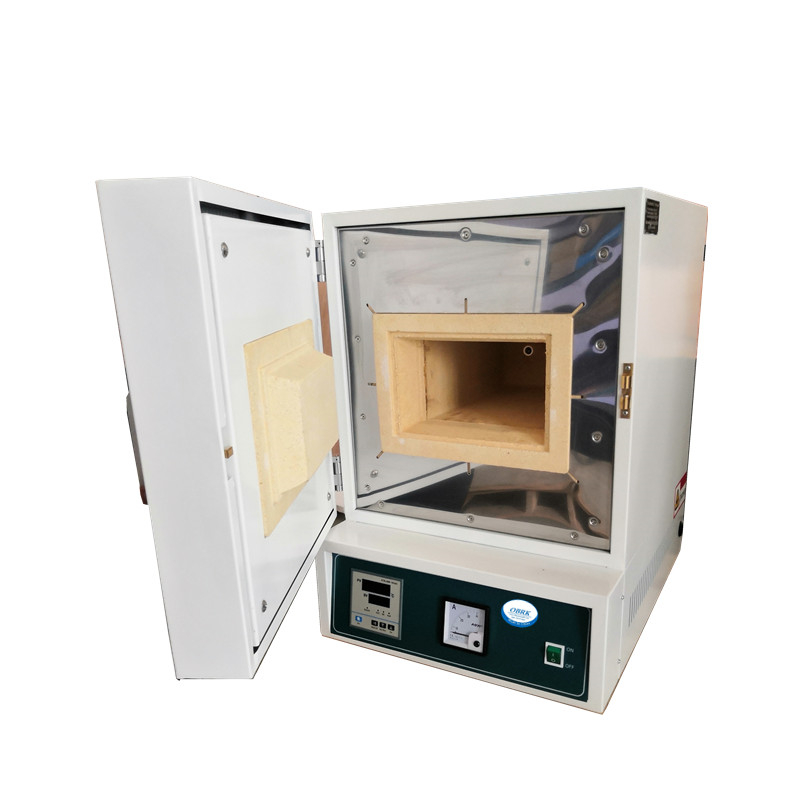

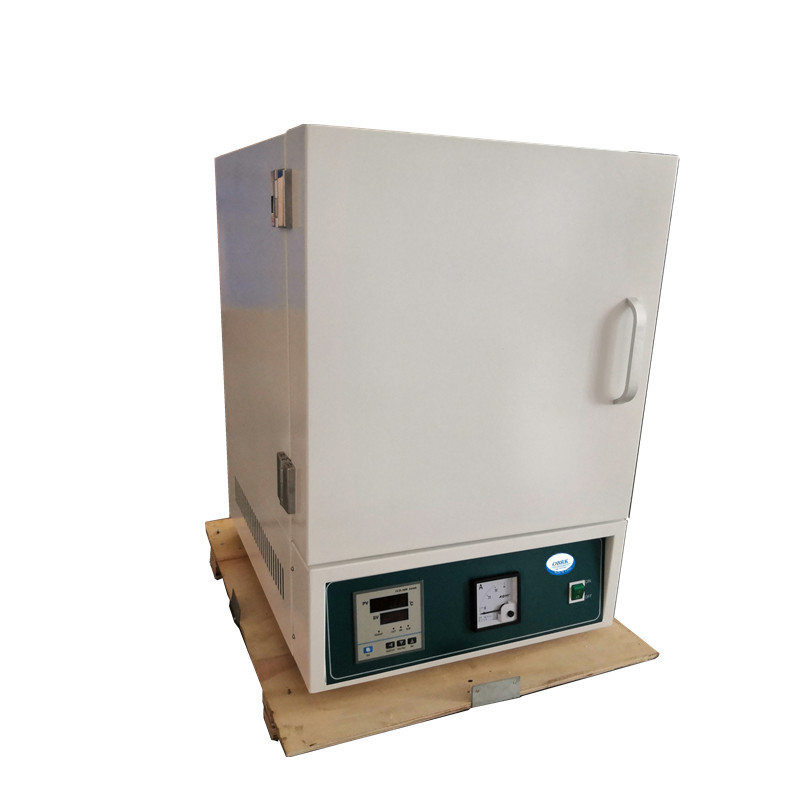

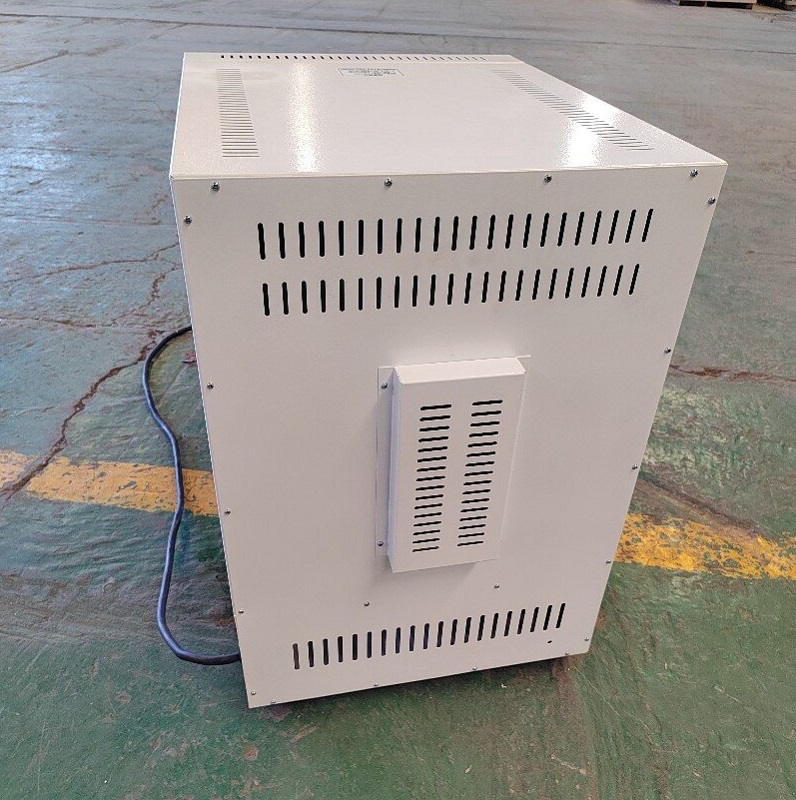

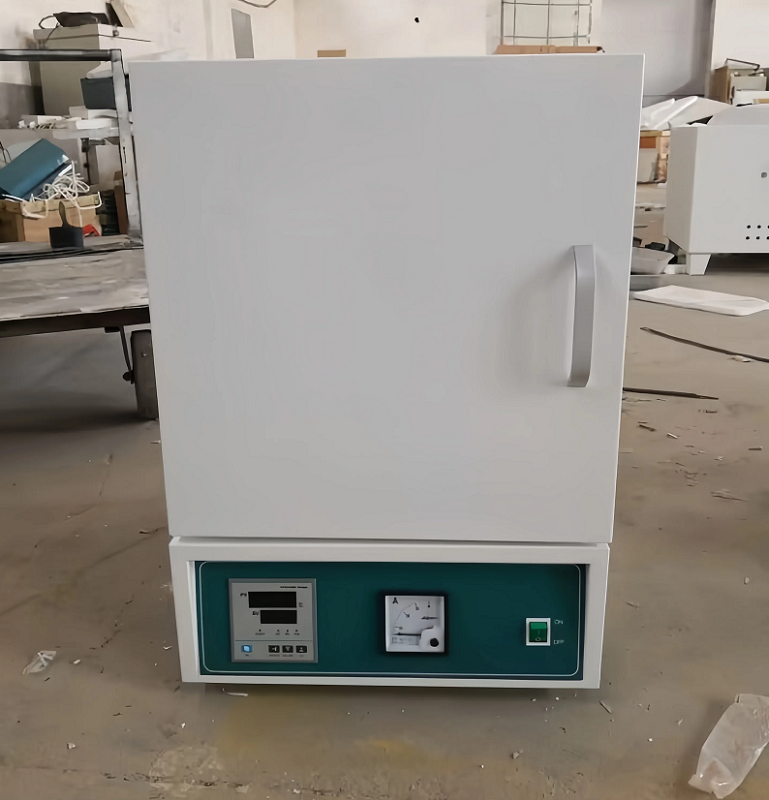

Muffle Furnace SX series

Product Description-1440.png

Used for high temperature heating and drying.

 features:

1. Resistance wire embedded inside lining, up, down, left, right, bottom, 5 surface heating, furnace temperature uniformity.

2. Having a  vent to discharge the steam and other gases, prolong service life of heating elements.

3. Chamber adopts advanced light material (0.29 density), compared with the traditional muffle furnace weight the 2/3, the rate of temperature have doubled, save the energy, the life expectancy increased 4 times.

4. Controling temperature by programmable temperature control meter, intelligent temperature control, easy to operate.

Model

SX-2.5-1000

SX-4-1000

SX-4-1200

SX-6-1400

SX-4-1600

Voltage

220V, 50HZ

220V, 50HZ

220V, 50HZ

220V, 50HZ

220V, 50HZ

Power

2.5KW

4.0KW

4.0KW

6.0KW

4.0KW

Max. temperature

1000℃

1000℃

1200℃

1400℃

1600℃

Working room size

200x120x80mm

300x200x120mm

300x200x120mm

200x200x300mm

120x200x300mm

Net weight

65KG

70KG

85KG
